Description

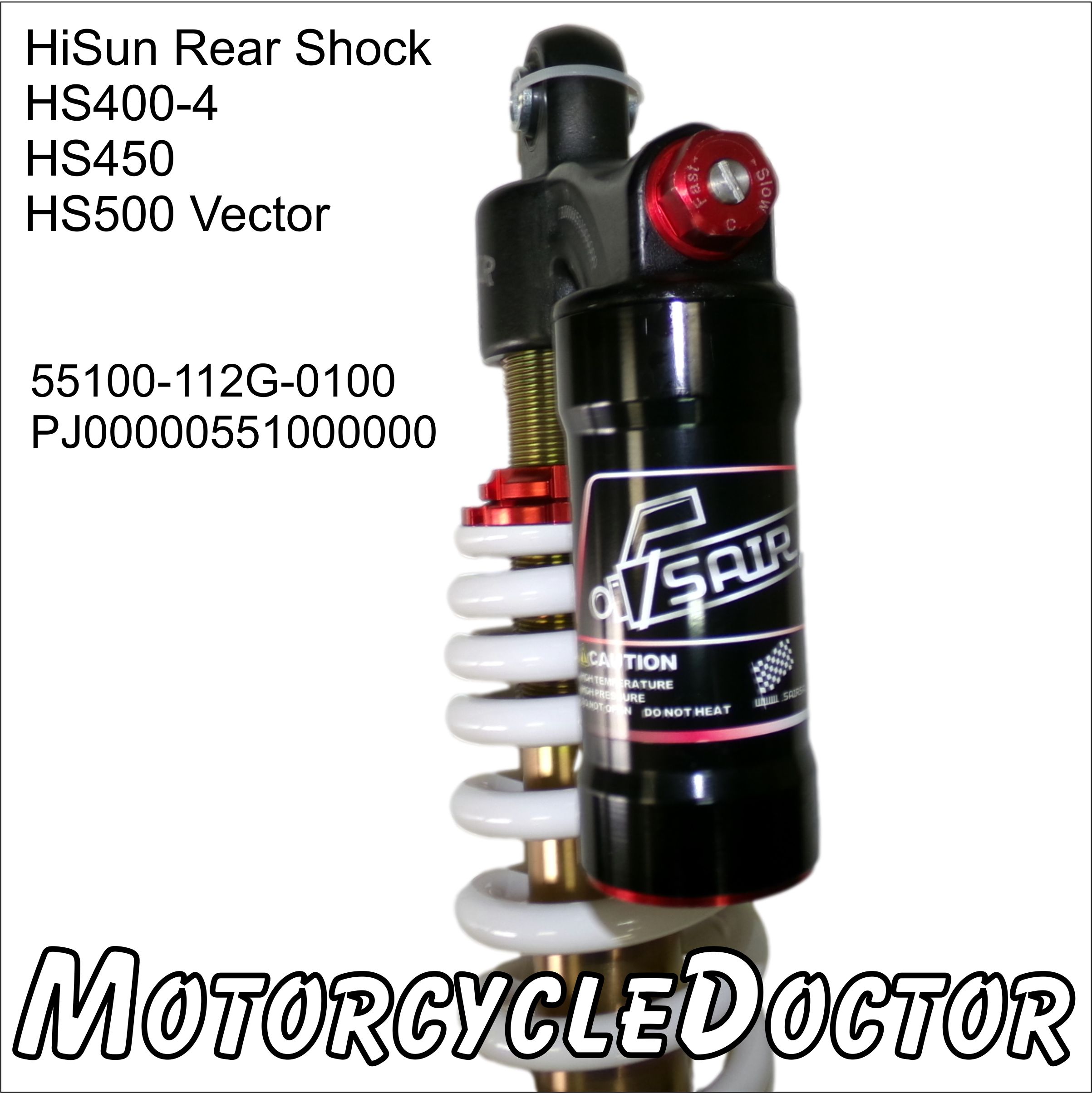

Rear Shock Absorber
From the HiSun Factory
UTV 400, 450, 500 Vector and E1
Most Bench Seat Models 2015-2025
Please Measure by Jacking Up the Frame
to Unload the A-Arm and Wheel
HiSUN, Coleman Rural King
20 1/8” in Length from Center EYE TO EYE and Has 12mm Bushing Bolt Holes

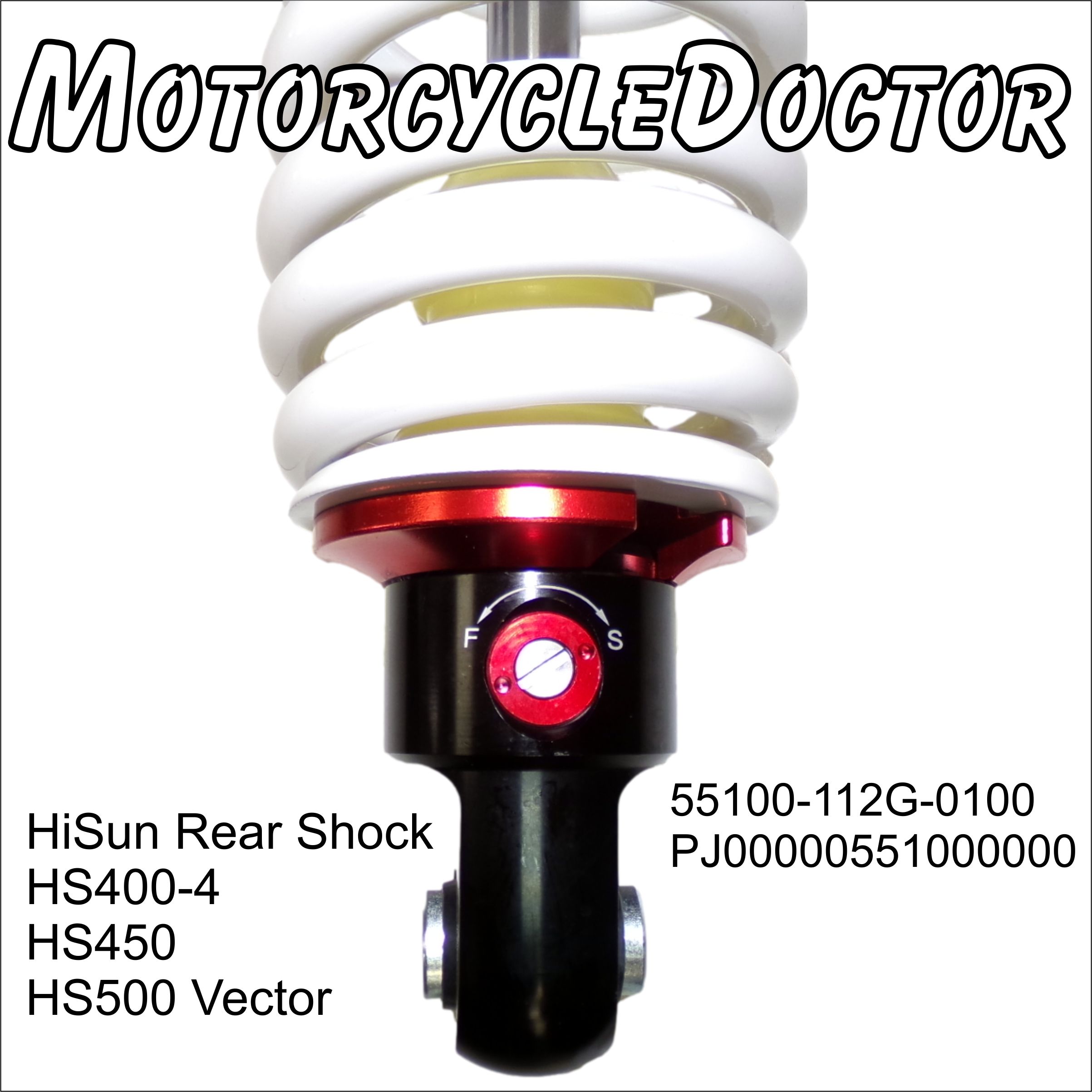

This shock can be Adjusted in Dampening from very little Resistance (Fast Movement) to
Lots of Dampening (Slower Movement) by simply turning the Compression and Rebound Screws.
This Shock also has a very large Preload Adjustment due to the Long Threads avalible.
For heavy loads increase the spring Compression or Loosen the Collar Ring Nuts for Lighter loads.
Approx. 20 1/8″ Length, Center eye hole to eye hole
